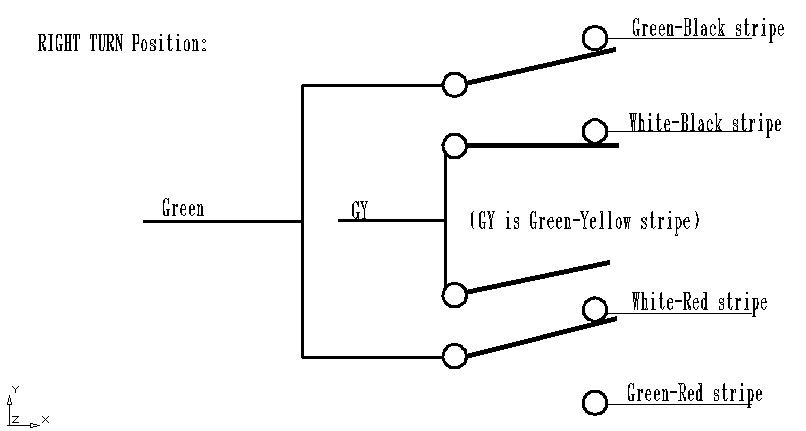

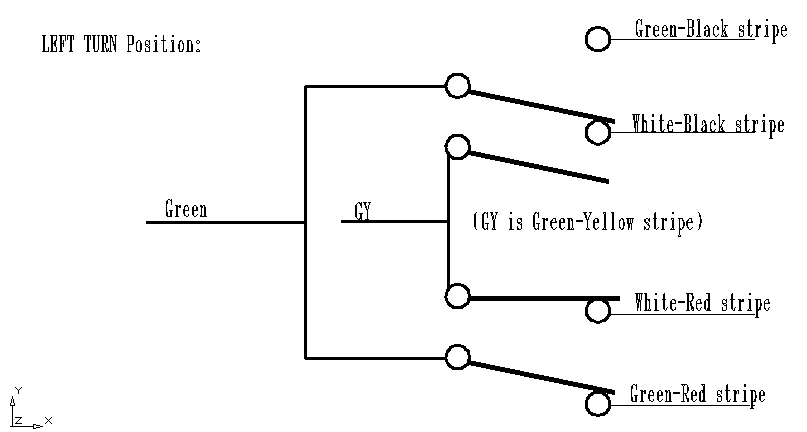

Note that the some of the contacts ( o's ) are shared across "poles".  This is due to a need to break the stop light circuit for the rear light being "blinked" (hooked to the turn signal flasher output). The following is a list of the wires and what they connect to:

Green-Black stripe (GBL) : Right front turn signal & dash indicator bulbs
Green-Red stripe (GR) : Left front turn signal & dash indicator bulbs
White-Black stripe (WBL) : Left rear turn signal bulb
White-Red stripe (WR) : Right rear turn signal bulb
Green (no stripe) (G) : Flasher output (other side of flasher is +12V)
Green-Yellow stripe (GY) : Brake switch (closed when brake pedal is up)
